Thermoplastic Heat Exchangers

As the sole UK distributor for specialist heat exchanger manufacturer Calorplast, CPS offers advanced heating and cooling solutions for corrosive, aggressive, and ultra-pure applications.

Our range of thermoplastic heat exchangers are designed for exceptional chemical resistance, thermal efficiency and long service life, making them ideal for demanding process environments.

Available Materials:

Polyethylene (PE)
PVDF (Polyvinylidene Fluoride)

Key Application Areas:

Our heat exchangers are used across a wide variety of industries, including:

Laboratory Heat Recovery
Chemical Processing
Pharmaceutical Manufacturing
Electronics and Semiconductor Fabrication
Metal Finishing (Anodising, Plating, Galvanising)
Steel Production
Aquariums and Sea Life Centres

These systems are particularly well-suited for processes involving aggressive media, high purity requirements or saltwater environments.

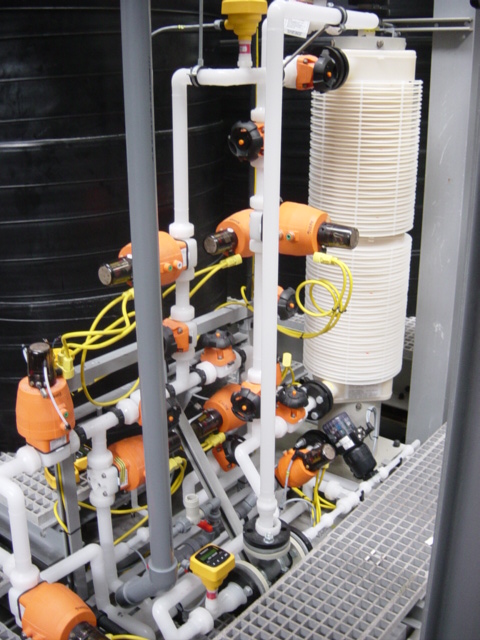

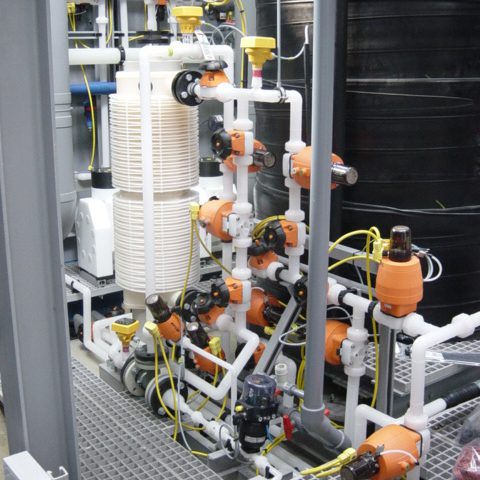

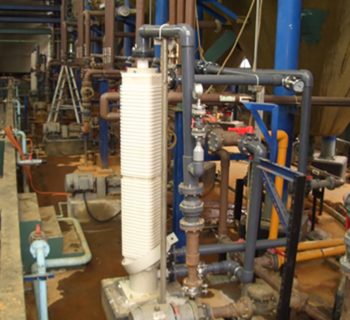

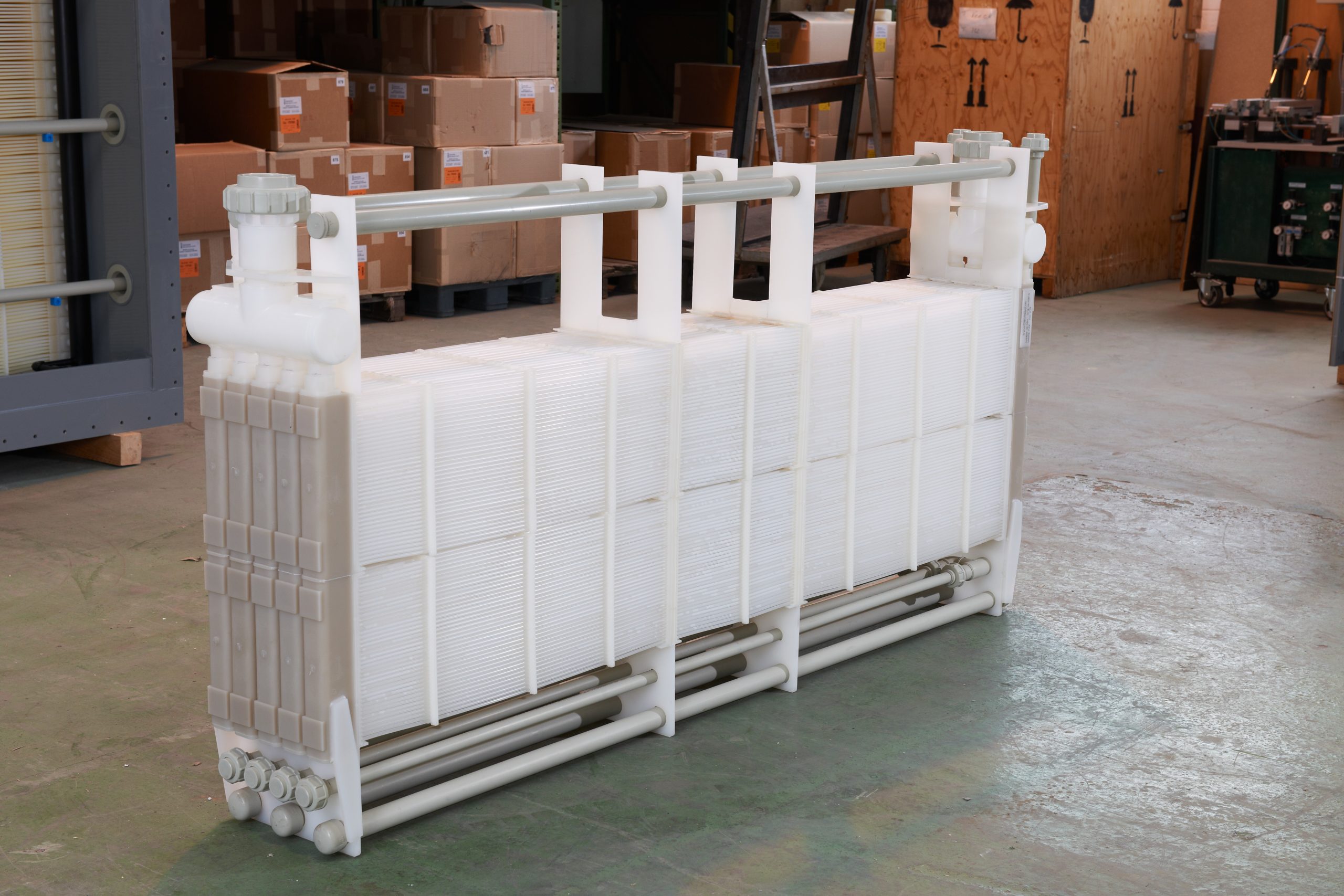

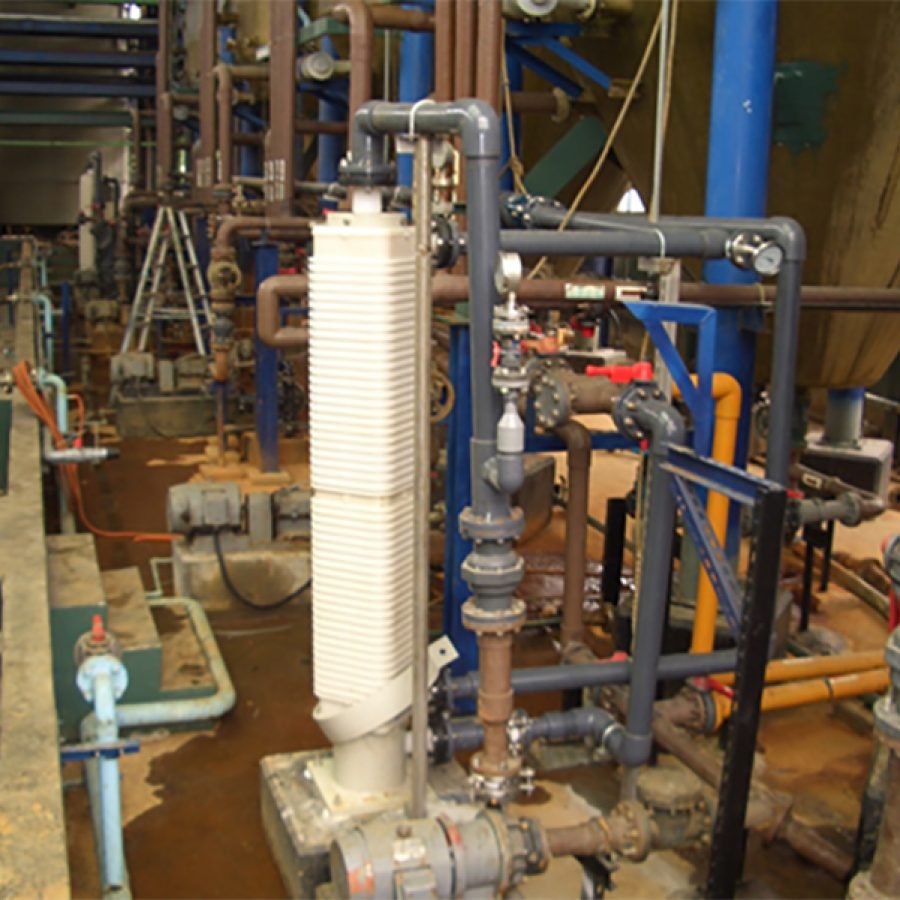

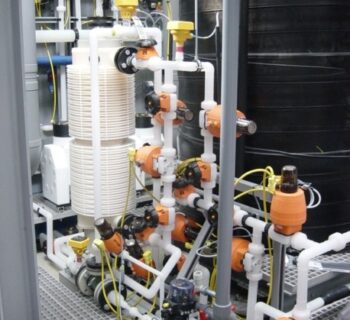

Tube and Plate Heat Exchangers

Tube and plate heat exchangers are specially engineered for heating and cooling of aggressive low-viscosity fluids offers reliable performance under a wide range of operating conditions:

Flow Rates: Up to 500m³/h
Operating Temperatures: Up to 140 °C
Operating Pressure: Up to 16 bar

These performance characteristics make our systems ideal for demanding industrial environments where conventional metal heat exchangers may fail due to corrosion or contamination concerns.

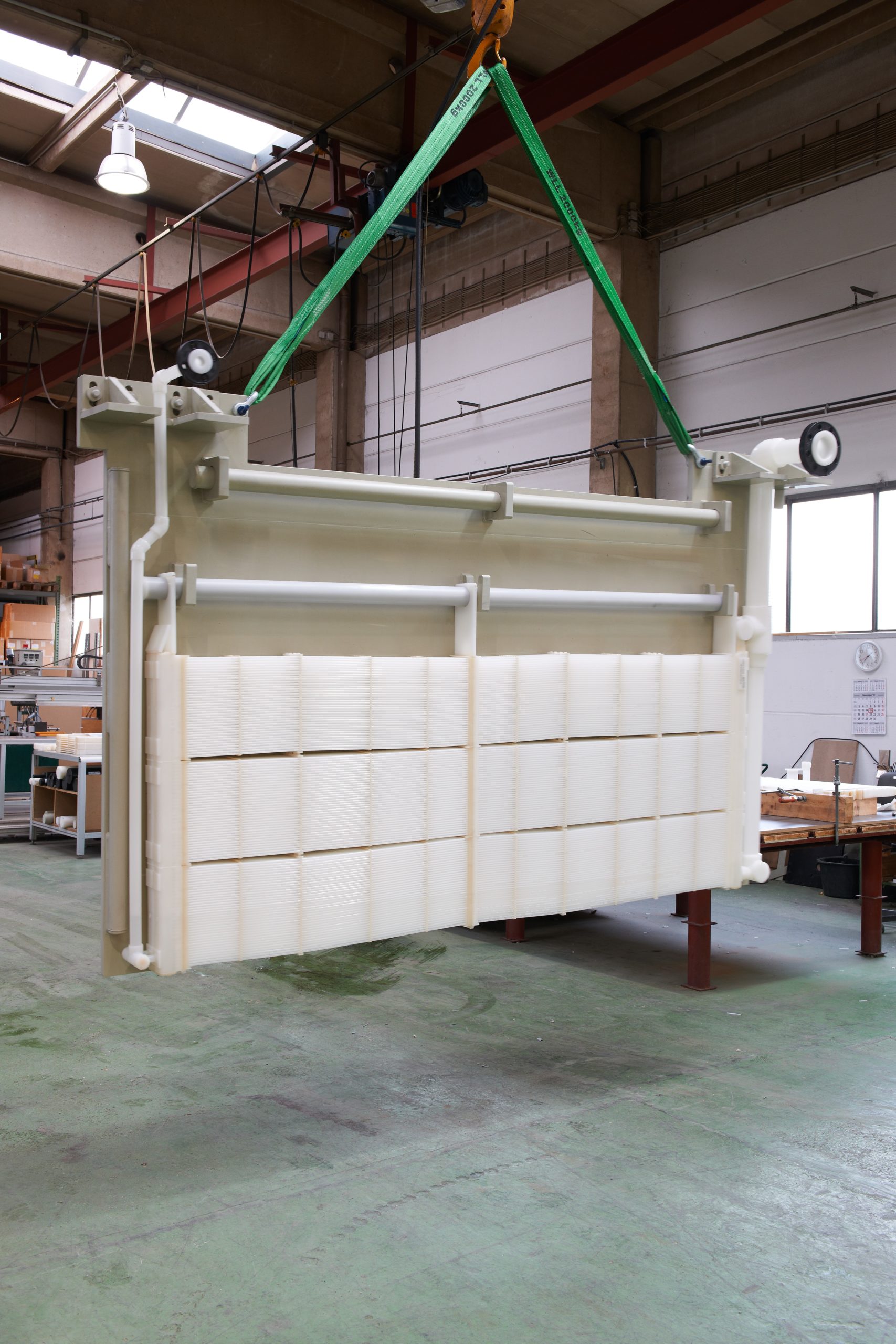

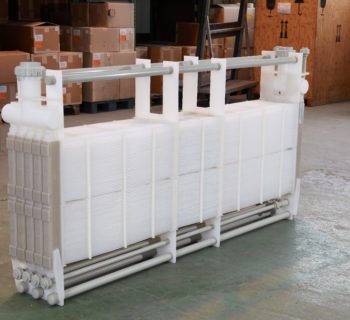

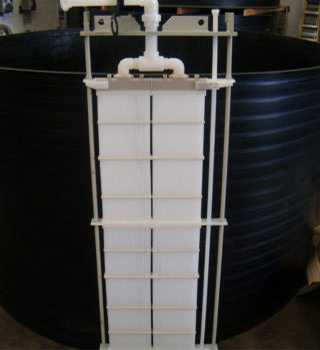

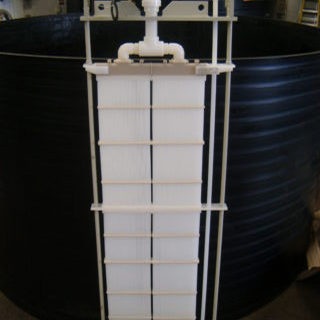

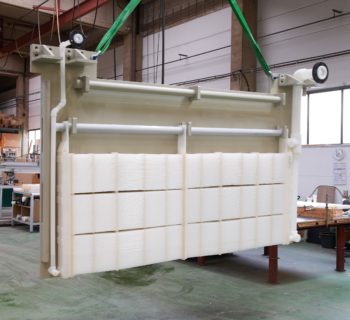

Immersion Heat Exchangers

Immersion heat exchangers are widely used for the heating and cooling of process vessels across the metal finishing and chemical processing industries.

These units are fully custom-designed and manufactured to meet your specific process requirements, vessel dimensions, and operating conditions.

Key Features:

Operating Temperatures: Up to 135 °C
Pressure Rating: Up to 16 bar
Material Options: Polyethylene, and PVDF
Corrosion-Resistant and Low Maintenance

Immersion heat exchangers offer an efficient, compact and chemically resistant solution for direct thermal transfer within process tanks, helping to improve process control and operational reliability.

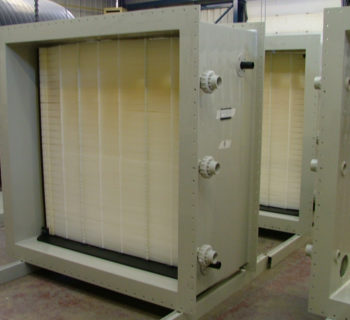

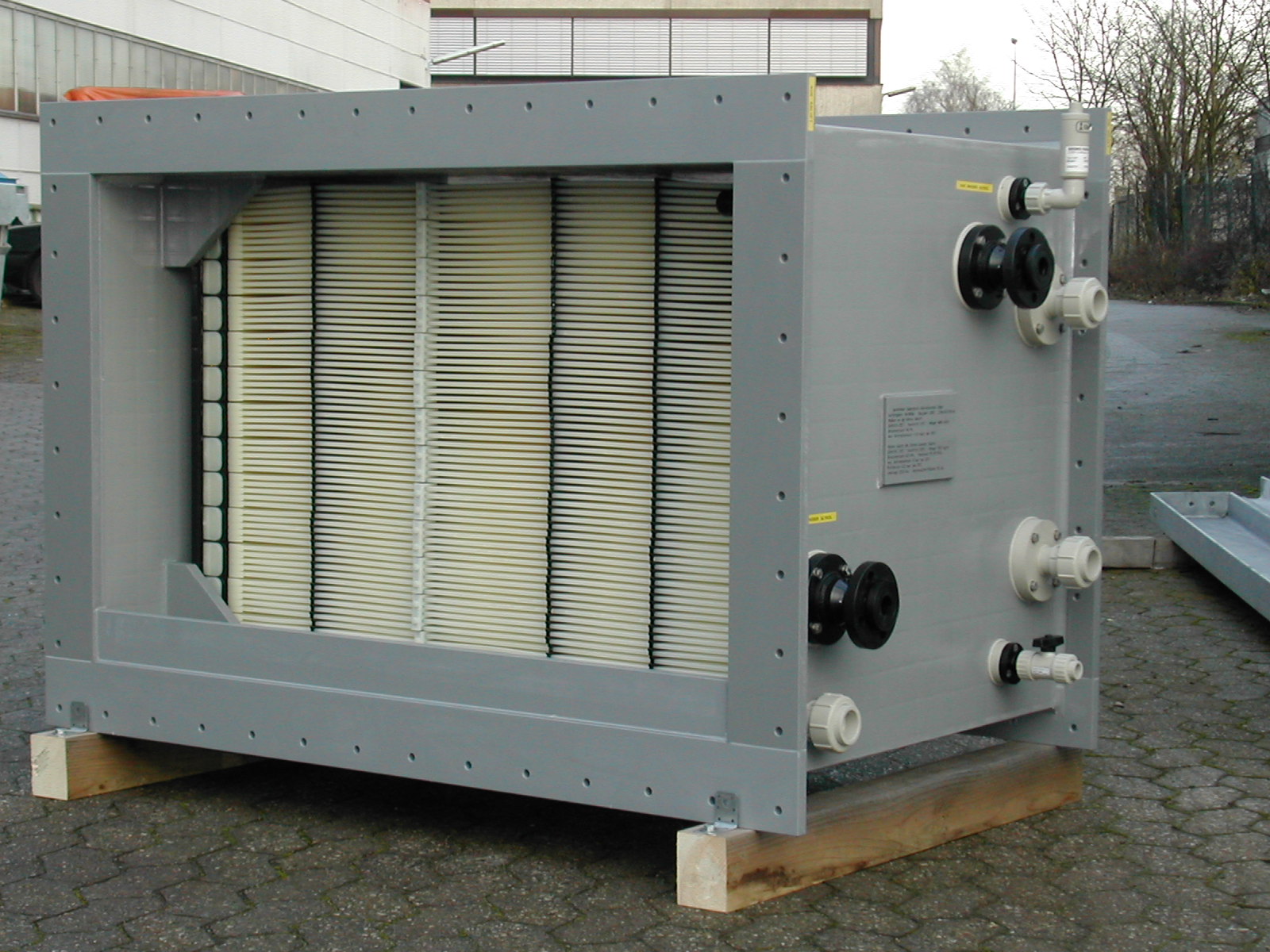

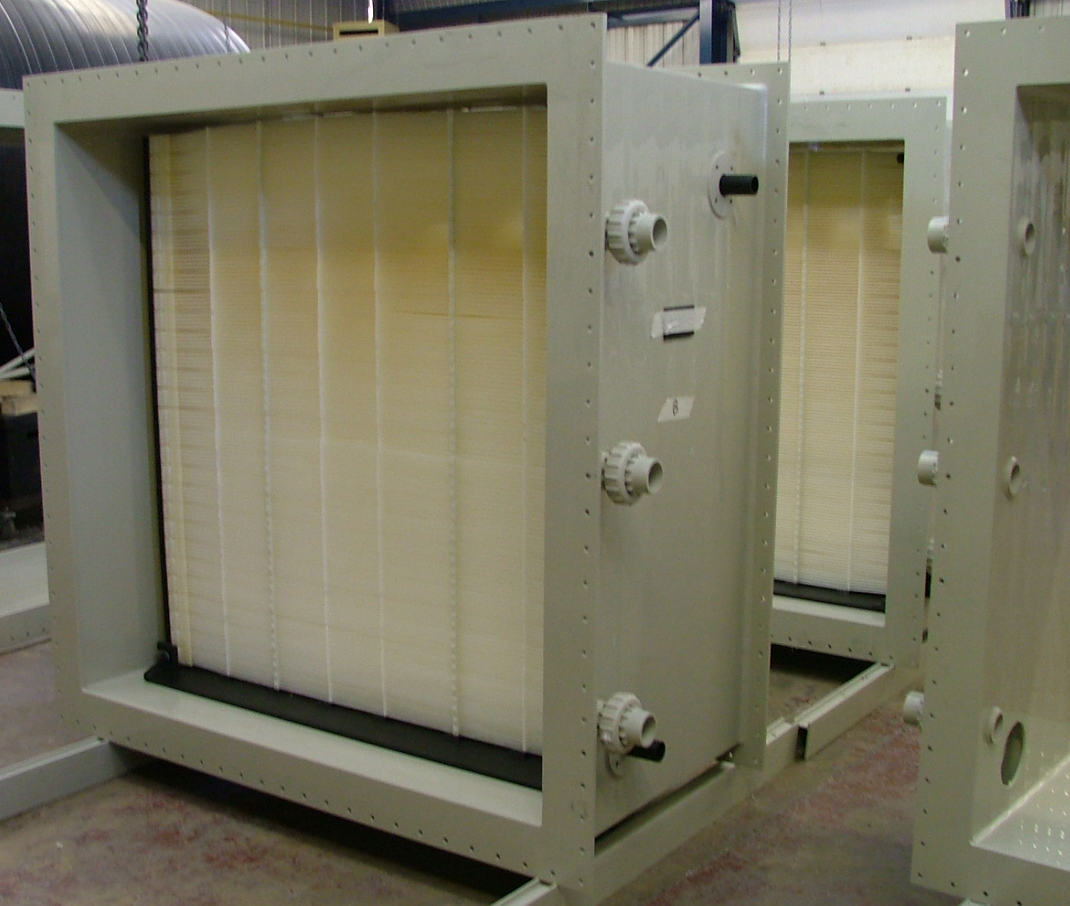

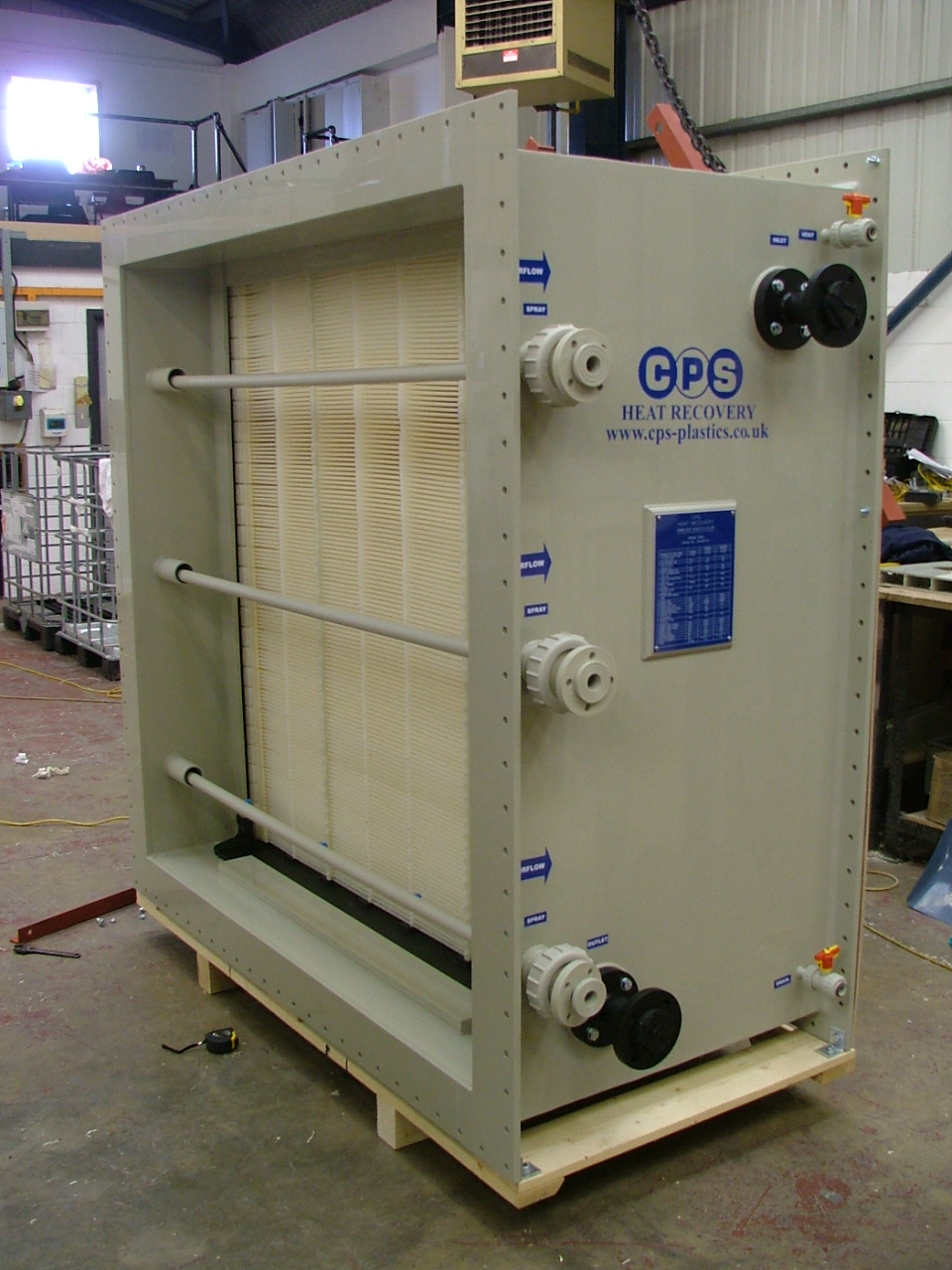

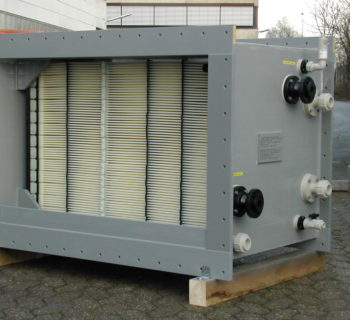

Gas to Liquid Heat Exchangers

Gas to liquid heat exchangers are ideal for the cooling, heat recovery and condensation of aggressive waste gases and vapours in demanding industrial environments.

The heat exchangers are built for durability and high thermal performance in corrosive conditions.

Typical Applications:

Cooling of aggressive waste gases
Condensation of corrosive vapours
Integration into energy-saving heat recovery systems

Technical Capabilities:

Extraction Volumes: Up to 150,000 m³/h
Operating Temperature Range: –30 °C to +140 °C
Fully customisable designs to suit your process and space requirements

These heat exchangers form a key component of our proprietary Heat Recovery Systems, helping reduce energy consumption and improve environmental performance in facilities handling corrosive or high-temperature exhaust streams.

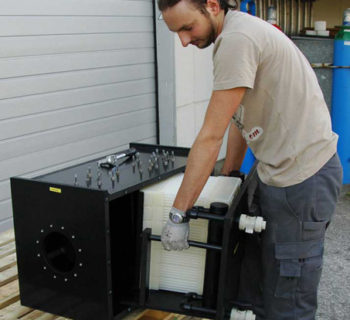

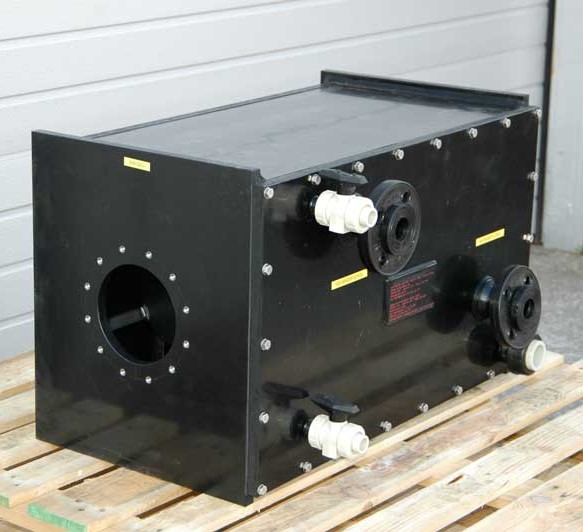

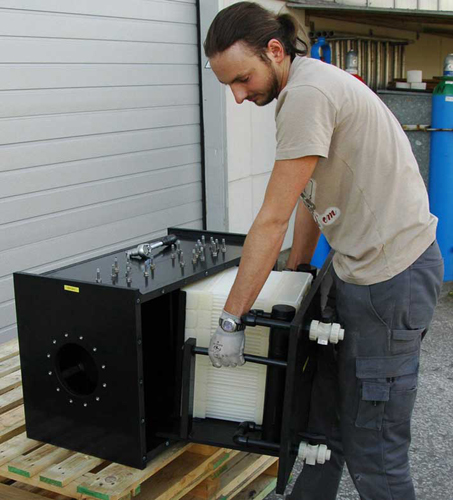

Biogas Heat Exchangers

A specialised range of heat exchangers tailored for the biogas industry. These units are designed to cool biogas and condense water vapor from the gas inlet stream, improving the efficiency of downstream purification processes.

Typically installed at the start of the purification train following the fermenter, the heat exchangers help enhance the removal of contaminants such as Hydrogen Sulphide and Ammonia which dissolve more effectively in the condensate at lower temperatures.

Key Features:

Designed for efficient cooling and condensation of biogas streams
Positioned to optimise chemical purification downstream
Removable heat exchanger cores for easy maintenance, including high-pressure and chemical cleaning

This modular design ensures minimal downtime and maximises operational reliability in biogas plants.

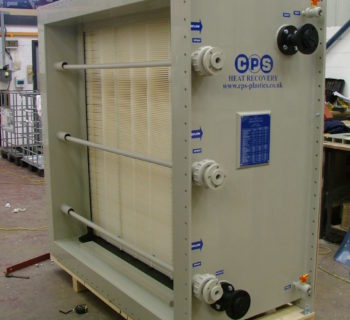

Reduce your energy costs

As the UK distributor for Calorplast Heat Exchangers, CPS offers advanced thermoplastic heat recovery system solutions specifically engineered for corrosive fume extraction in cleanrooms and laboratories.

These facilities typically consume three to four times more energy per square meter than standard office buildings, making efficient heat recovery essential for sustainability and cost savings.

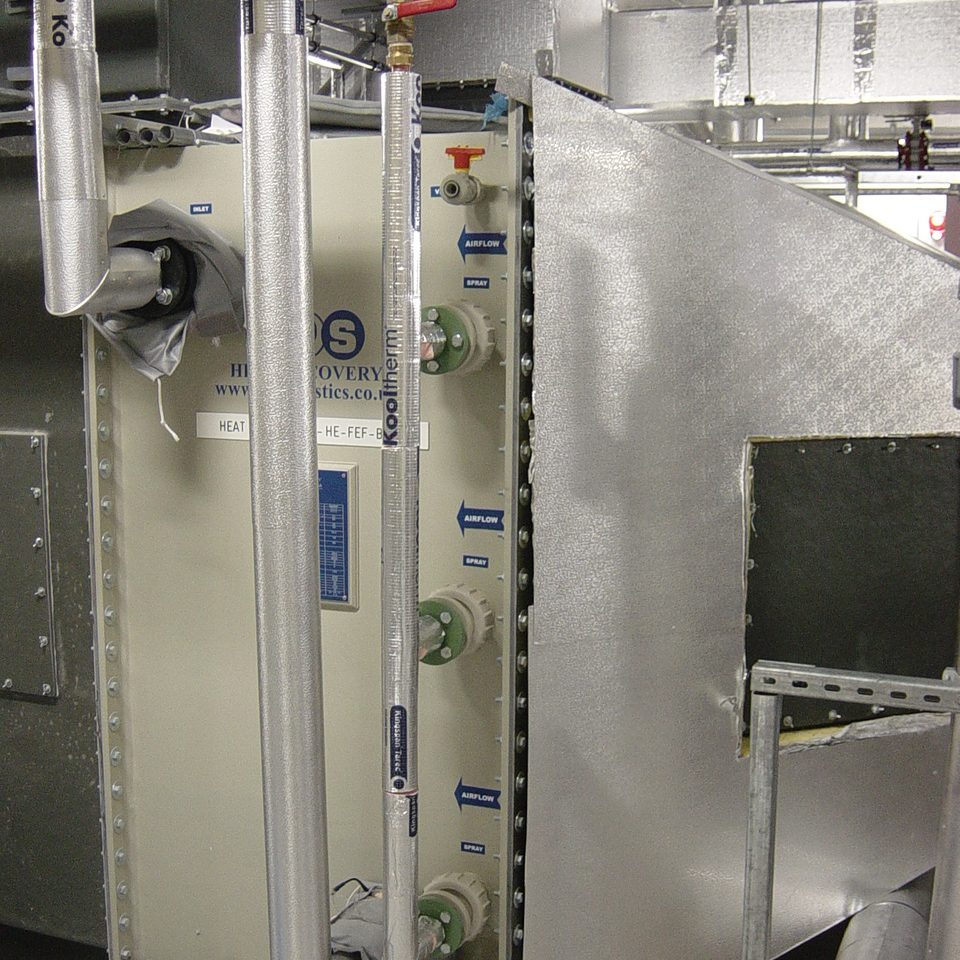

How It Works

Our heat recovery systems use thermoplastic heat exchangers integrated directly into the corrosive fume extraction ductwork. These exchangers are connected via a run-around coil system to a heat exchanger located in the fresh air intake of the building’s Air Handling Unit (AHU).

Winter: The system pre-heats incoming fresh air reducing the heating demand on the AHU.
Summer: The system cools the incoming air easing the cooling load.

This approach significantly reduces energy consumption, lowers operational costs and minimizes the environmental footprint of your facility.
